Our Partners — Machines
CNC Machines
Braun Technical Tools is the authorized Philippine distributor for SYIL and Priminer — two complementary machine lines covering compact benchtop mills through heavy-duty 5-axis gantry centers.
Authorized Distributor
SYIL Machine Tools
SYIL produces a comprehensive range of CNC machining centers — from compact 3-axis mini mills to full 5-axis vertical centers — all designed for precision, reliability, and ease of use in production and job-shop environments. Every machine is equipped with Siemens SINUMERIK controls and premium components from THK, SCHNEEBERGER, and other global suppliers.
6
Machine series
BT30–40
Spindle tapers
Siemens
Standard control
Series 01 — Vertical Milling
Vertical Milling Machines — X Series
General-purpose vertical machining centers from compact 300mm travel through large-format 1,000mm, suited for milling, drilling, and boring operations across all production scales.

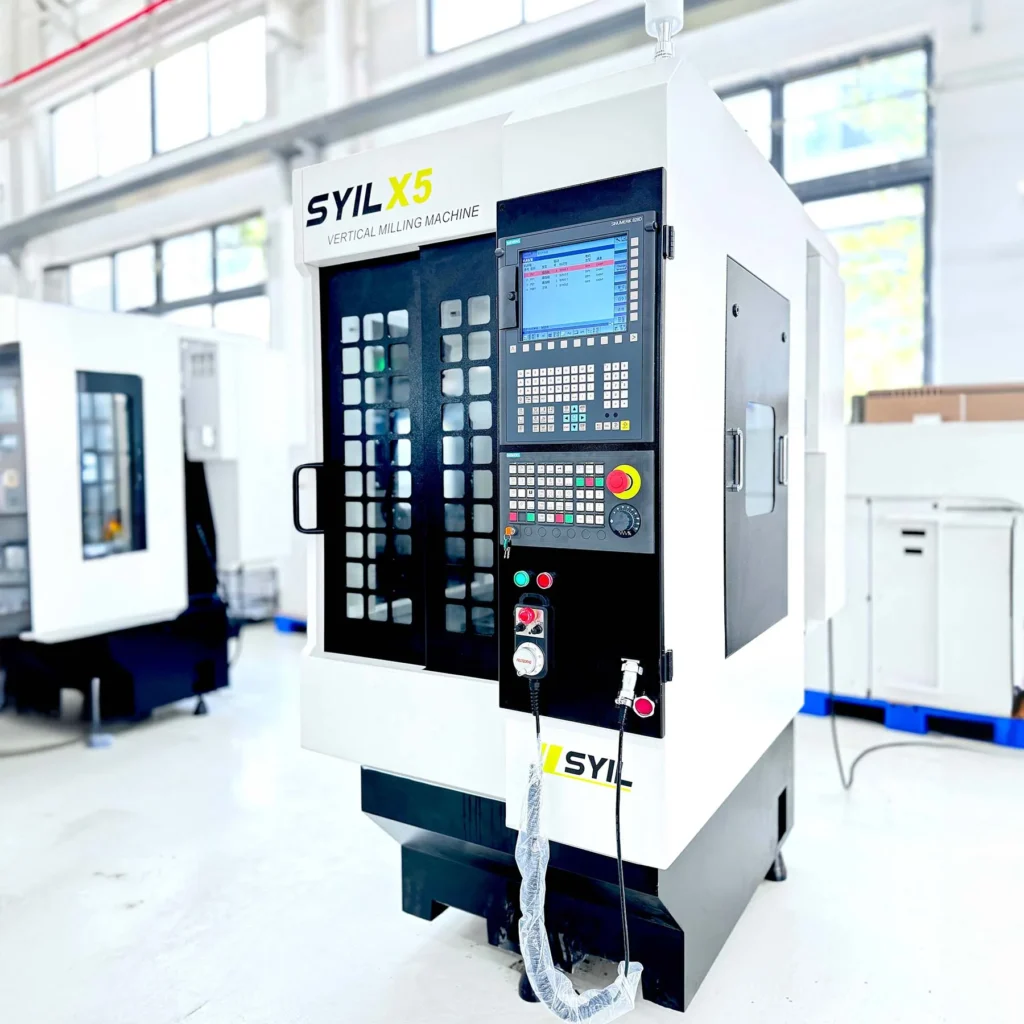

SYIL X5
Mini Vertical Machining Center
Travel (X/Y/Z)300 / 260 / 300 mm
Spindle speed20,000 rpm
Tool capacity16 tools (wheel)

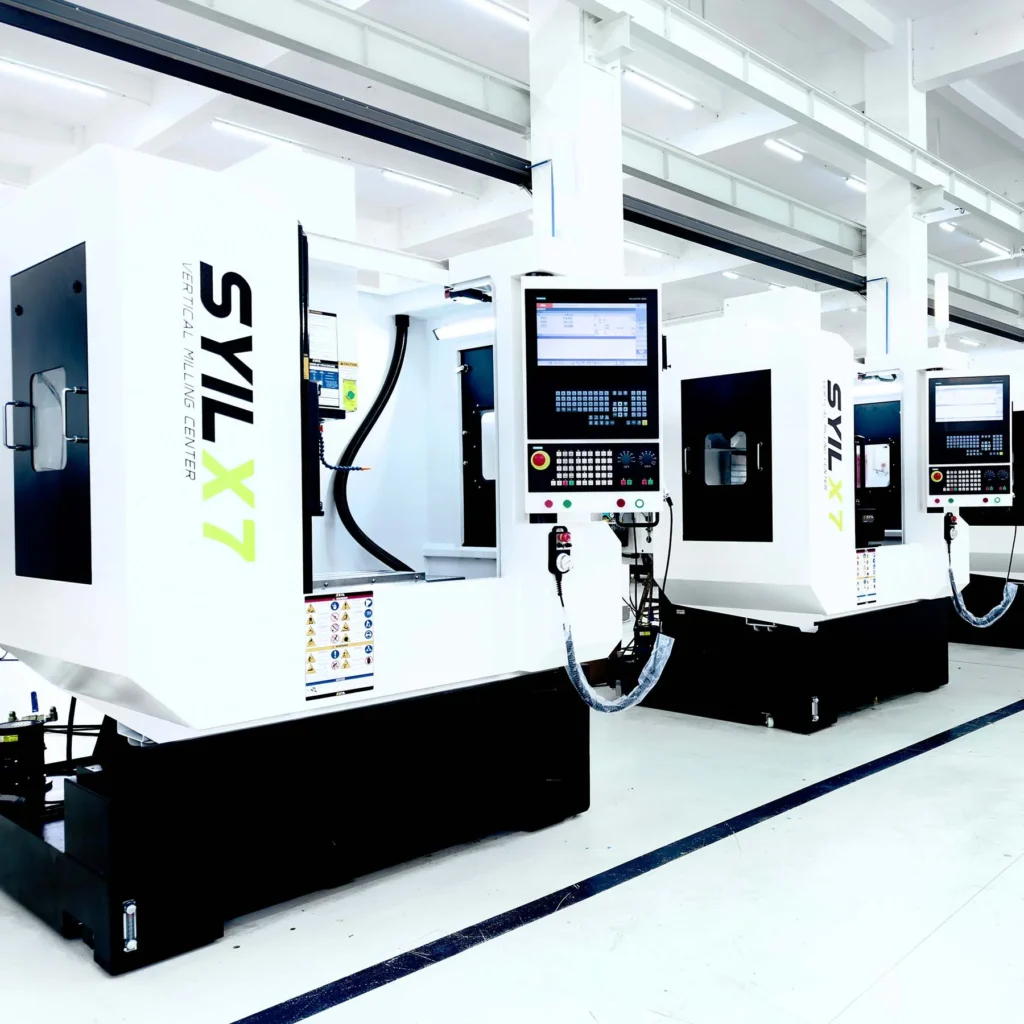

SYIL X7
Vertical Machining Center
Travel (X/Y/Z)400 / 300 / 380 mm
Spindle speed12,000 rpm
Tool capacity16 tools (arm)

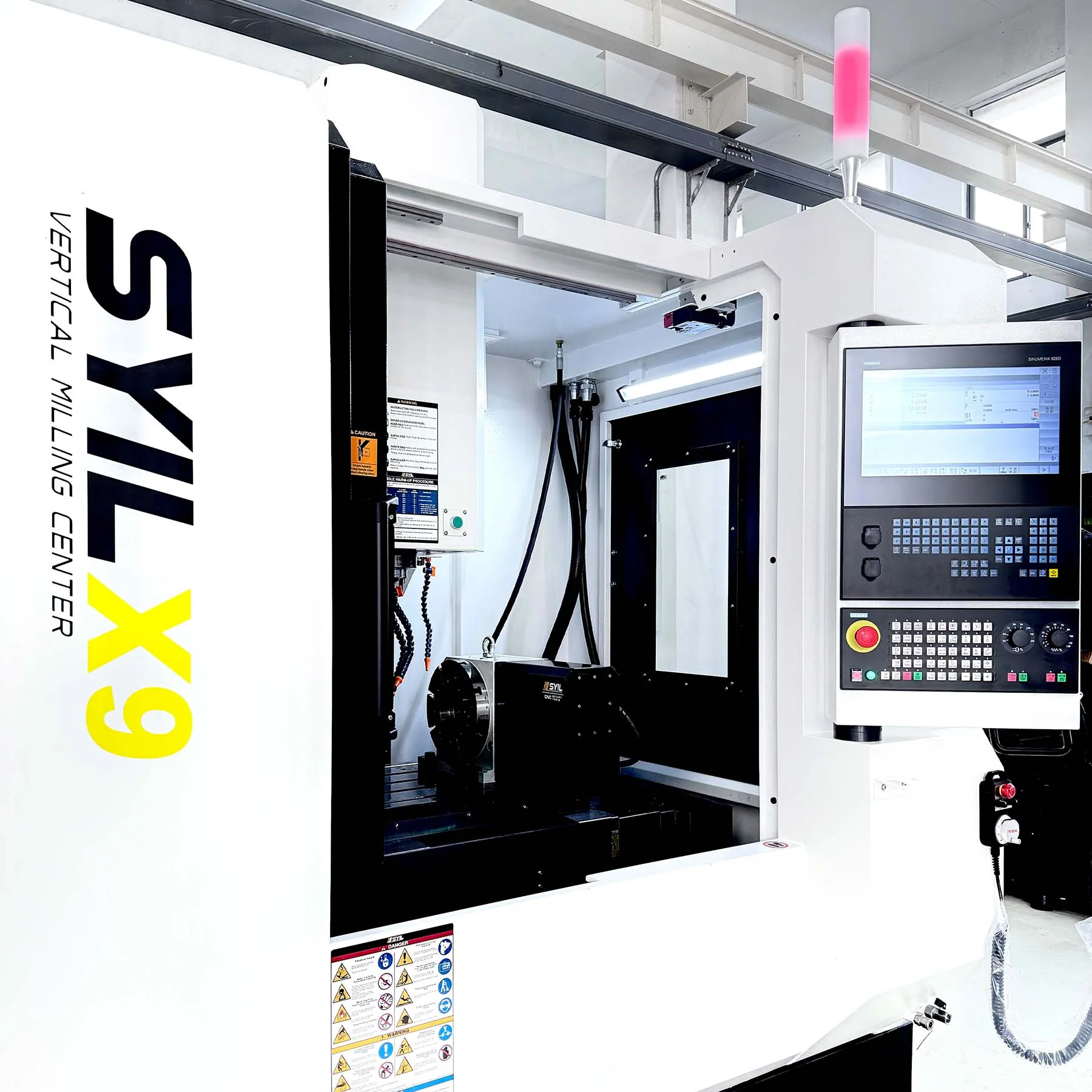

SYIL X9
Vertical Machining Center
Travel (X/Y/Z)760 / 500 / 500 mm
Spindle speed10,000 rpm
Tool capacity24 tools (arm)

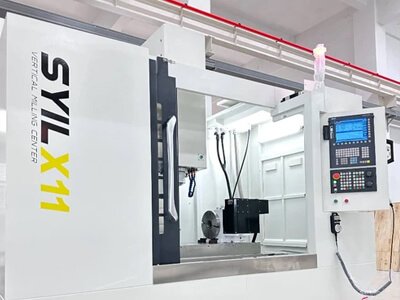

SYIL X11
Vertical Machining Center
Travel (X/Y/Z)1,000 / 500 / 500 mm
Spindle speed10,000 rpm
Tool capacity24 tools (arm)
Series 02 — CNC Lathes
CNC Turning Centers — L Series
Precision slant-bed CNC lathes covering small-part production through large-diameter turning, with optional live tooling and Y-axis on the L3.

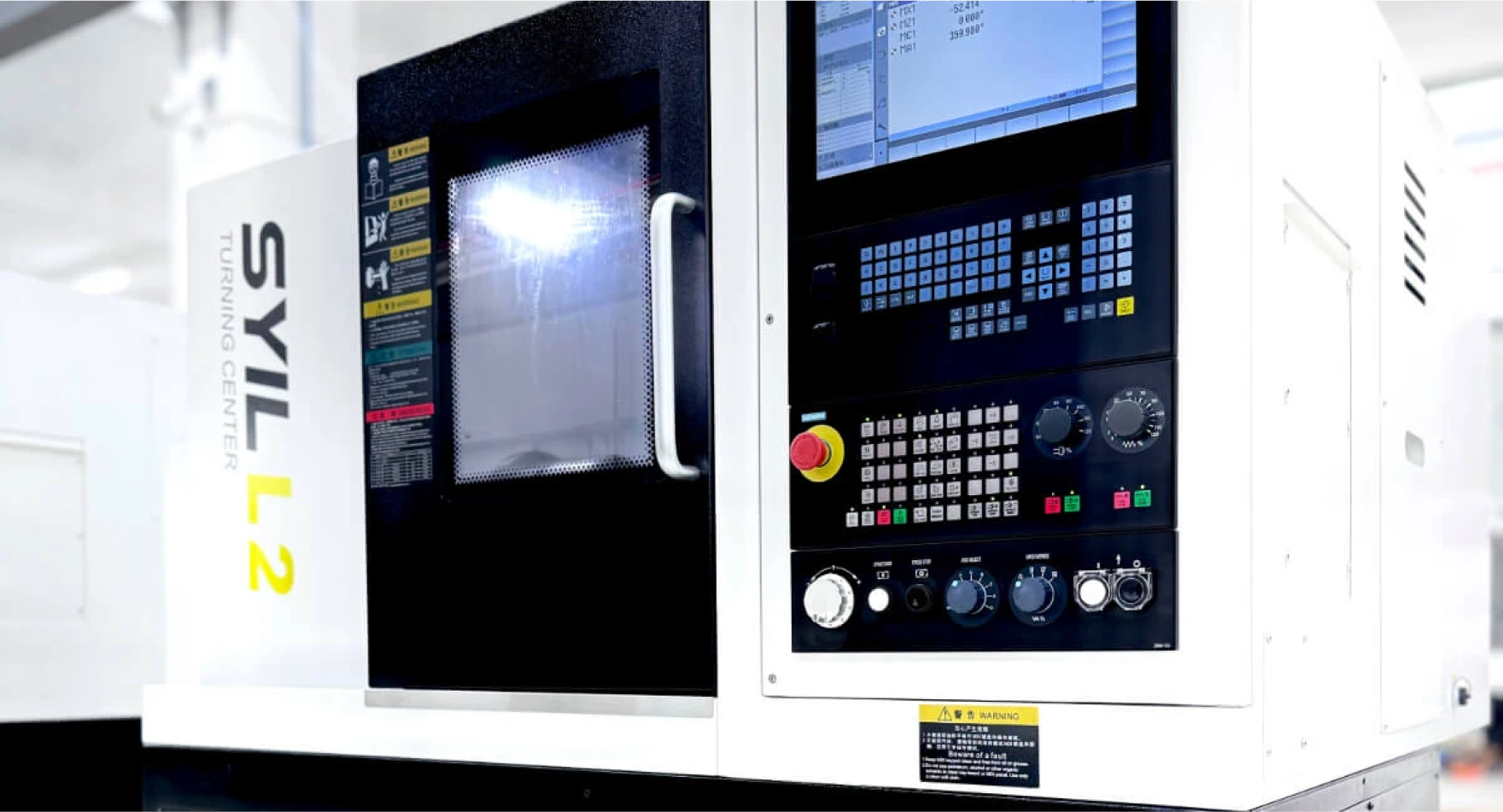

SYIL L2
CNC Turning Center
Max turning dia.Ø 380 mm
Max turning length300 mm
Spindle speed4,000 rpm

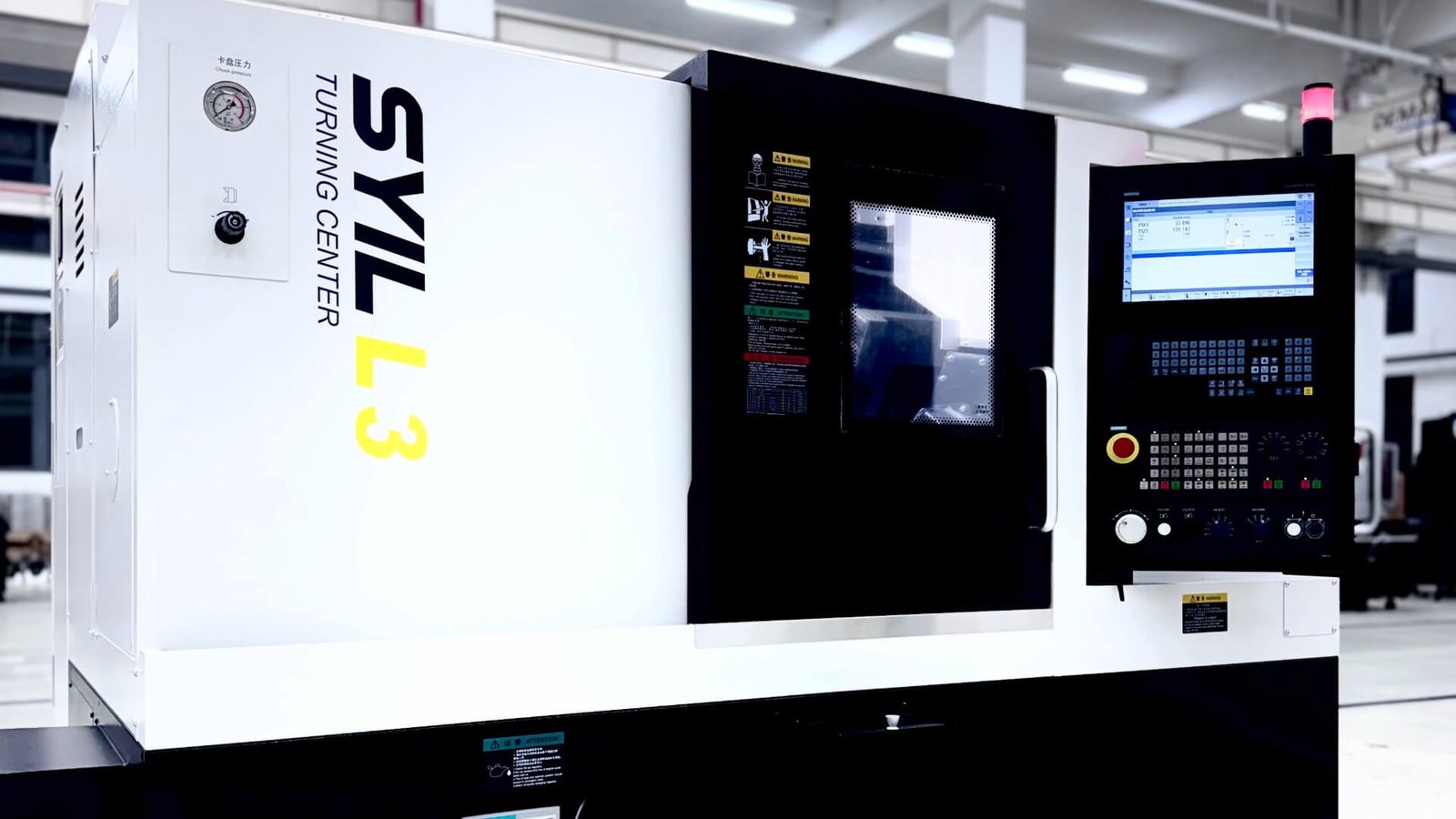

SYIL L3
CNC Turning Center
Max turning dia.Ø 380 mm
Max turning length500 mm
Spindle speed4,000 rpm

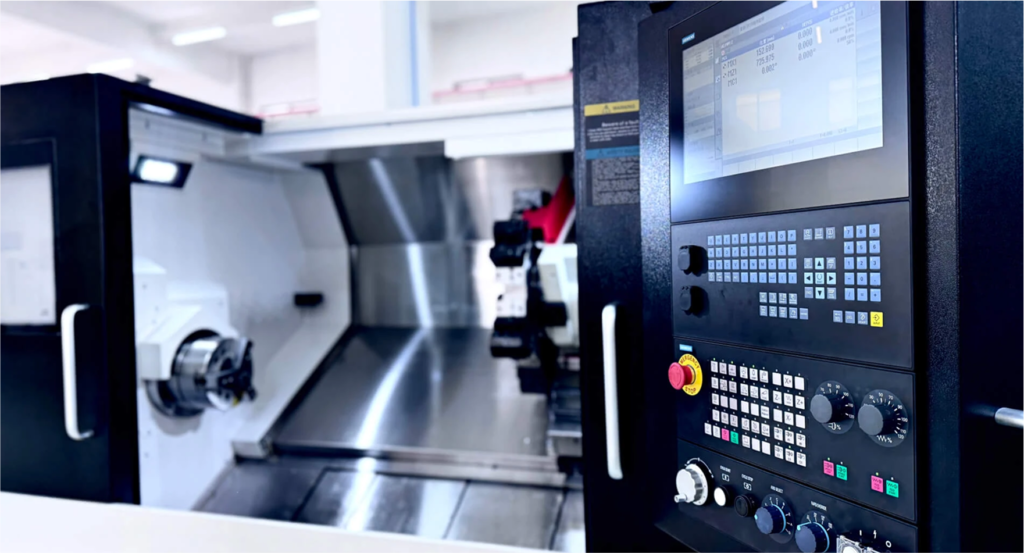

SYIL L4
CNC Turning Center — Large Parts
Max turning dia.Ø 520 mm
Max turning length800 / 1,100 / 1,500 mm
Spindle speed3,500 rpm
Series 03 — Drill / Tap
Drill / Tap Centers — T Series
High-speed tapping and drilling centers optimized for fast cycle times on smaller components.

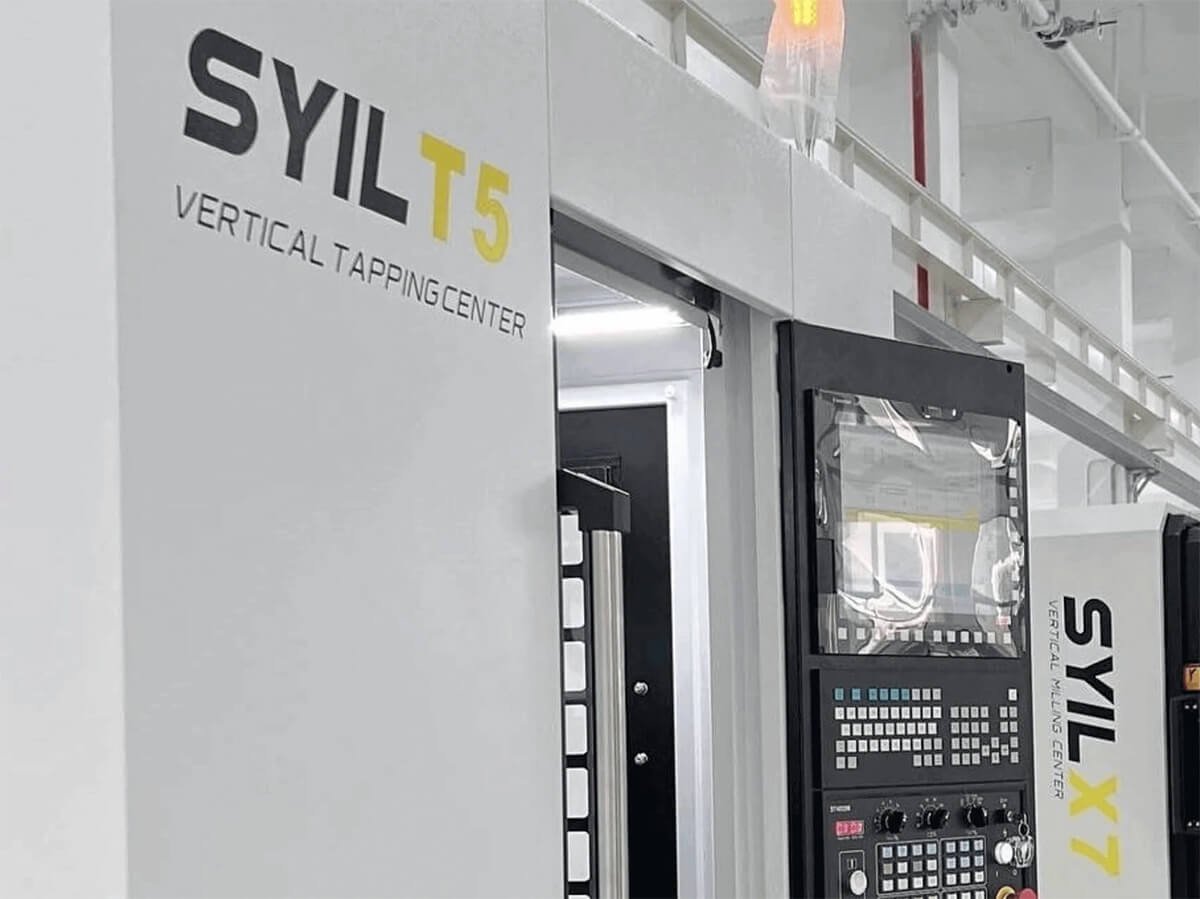

SYIL T5
Drill / Tap Center
Travel (X/Y/Z)500 / 400 / 350 mm
Spindle speedUp to 24,000 rpm
Tool capacity16 tools

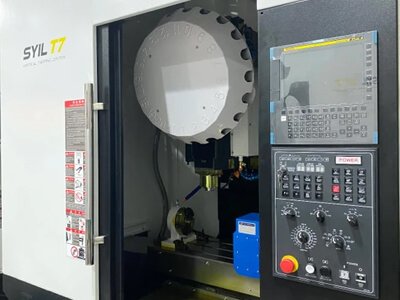

SYIL T7
Drill / Tap Center
Travel (X/Y/Z)700 / 420 / 380 mm
Spindle speedUp to 24,000 rpm
Tool capacity21 tools
Series 04 — 5-Axis
5-Axis Milling Machines — U Series
Full simultaneous 5-axis machining for complex geometries, impellers, medical components, and aerospace parts.
SYIL U5
5-Axis Machining Center
Travel (X/Y/Z)500 / 450 / 400 mm
Spindle speedUp to 15,000 rpm
Rotary axesA ±120° / C 360°
Looking for the full SYIL specifications?
Contact our team for detailed datasheets, pricing, and availability for any SYIL machine.
Authorized Distributor
Priminer Werkzeugmaschinen
Priminer is a German-European CNC machining center manufacturer with production across 4 global sites. Their portfolio ranges from entry-level vertical centers to heavy-duty gantry and 5-axis high-speed machining, all backed by premium components from Bosch Rexroth, HIWIN, Siemens, and Heidenhain with a standard 3-year machine warranty.
10,600+
Customers
42+
Countries
3 yr
Warranty
Series 01 — Entry / Mid Range
Delta Center
Compact and economical vertical machining centers for workshops entering CNC production or needing reliable secondary machines.

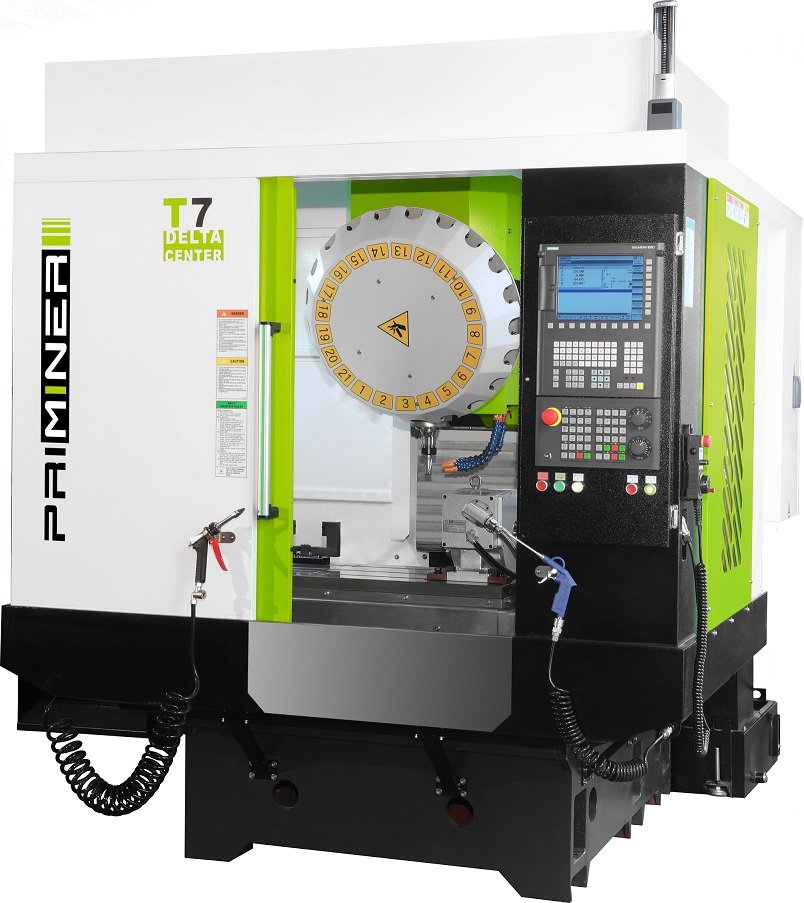

T7
Vertical Machining Center
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
ControlSiemens / Heidenhain
V7L Lite
Vertical Machining Center
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
ControlSiemens / Heidenhain
V10L
Vertical Machining Center
X travel1,000 mm
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
Series 02 — Production
Alpha Center
Mid-to-large vertical machining centers for production environments requiring consistent performance and a larger work envelope.
V7L
Vertical Machining Center
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
Opt. spindleDirect drive 12,000 rpm

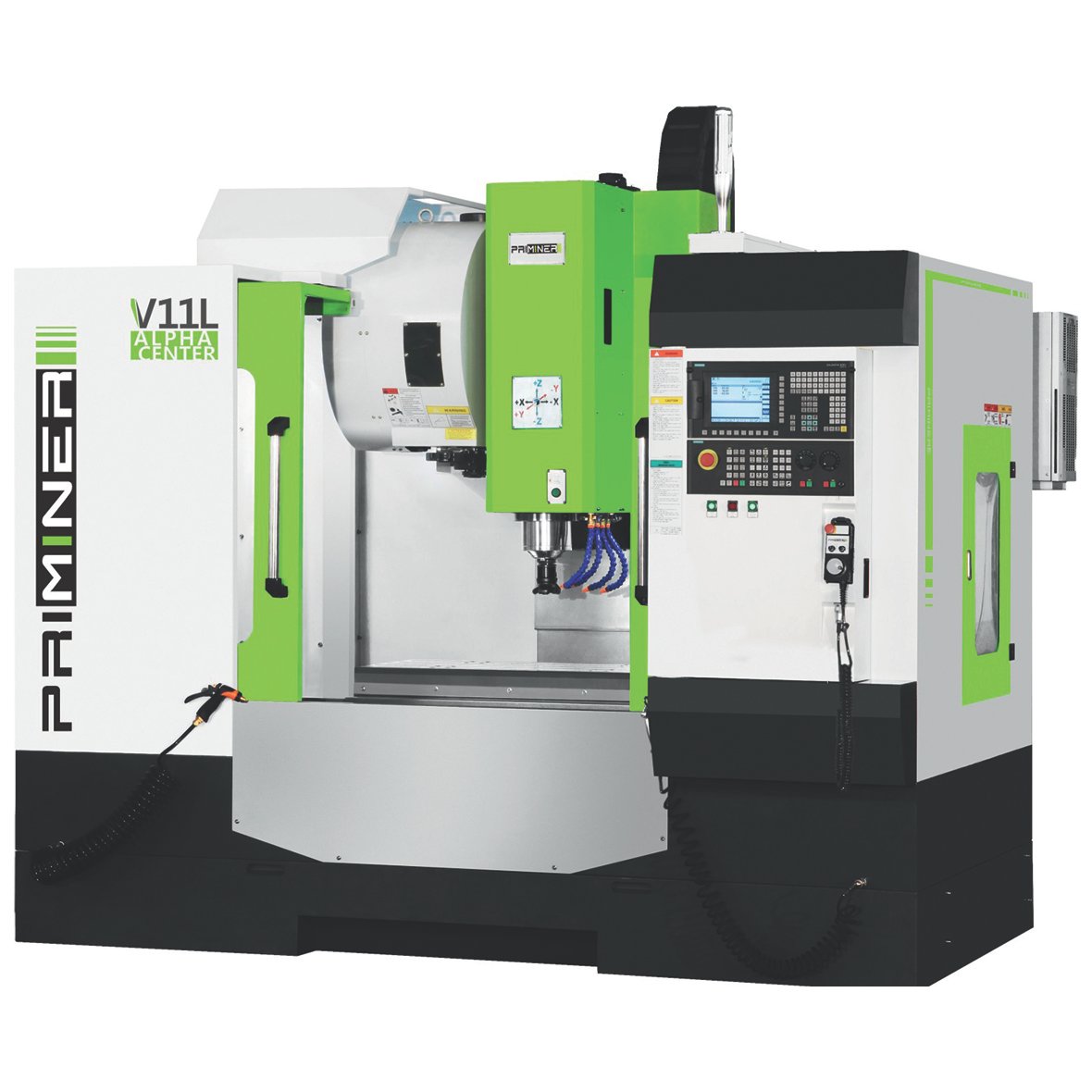

V11L
Vertical Machining Center
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
Opt. spindleDirect drive 12,000 rpm

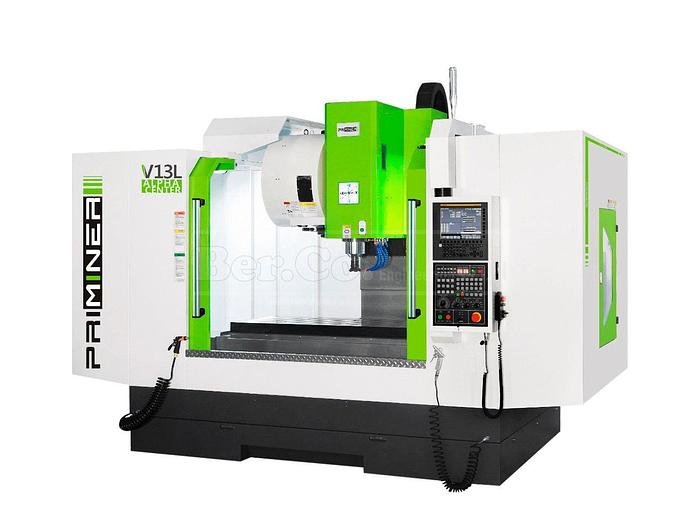

V13L
Vertical Machining Center
X travel1,300 mm
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type

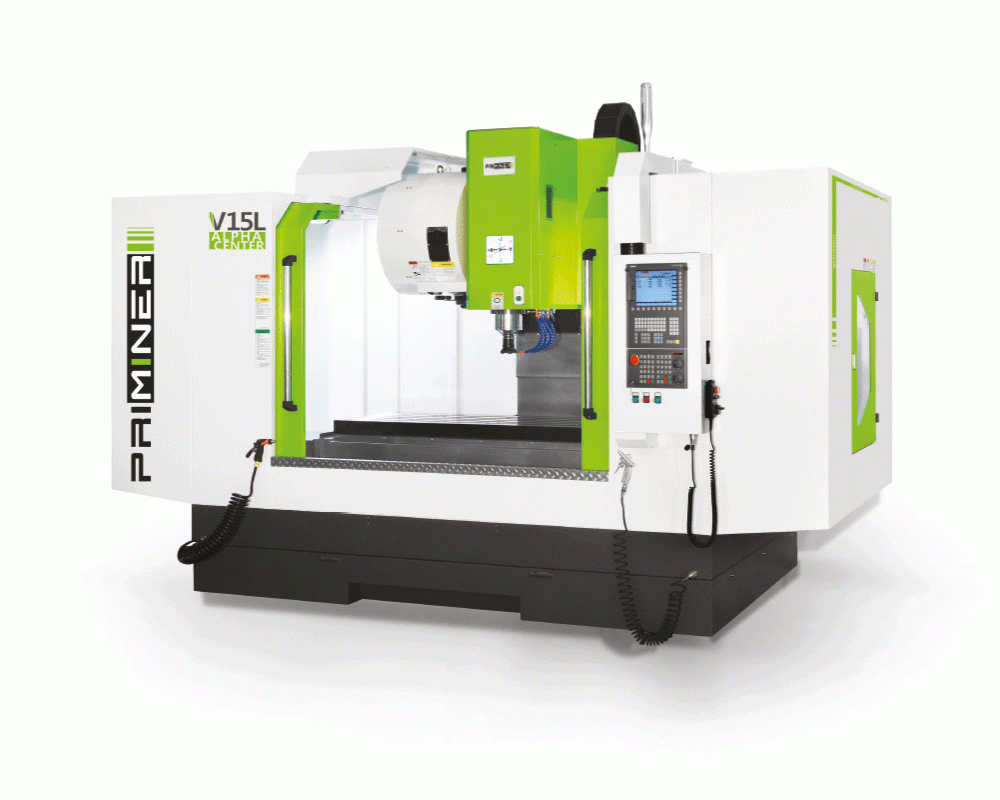

V15L
Vertical Machining Center
X travel1,500 mm
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
Series 03 — 5-Axis High Speed
5-Axis High Speed Center
Compact 5-axis machining centers for complex parts demanding simultaneous multi-axis contouring at high feed rates.

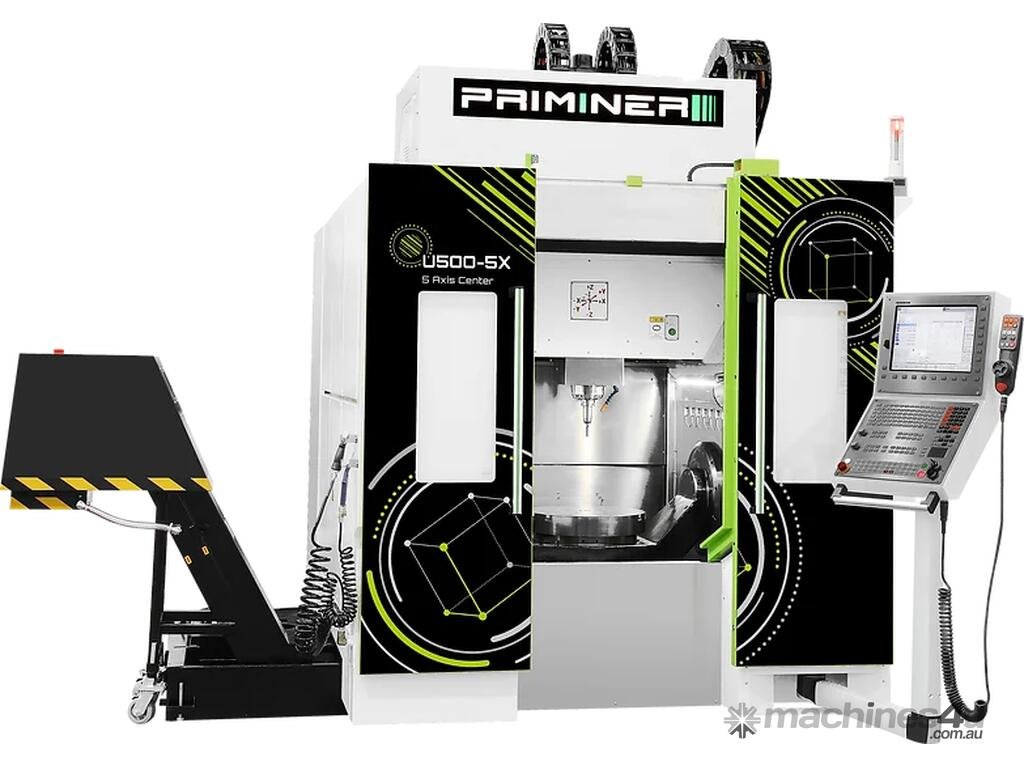

U500-5X
5-Axis High Speed Machining Center
Work envelope500 mm range
ConfigurationSimultaneous 5-axis
U630-5X
5-Axis High Speed Machining Center
Work envelope630 mm range
ConfigurationSimultaneous 5-axis
U800-5X
5-Axis High Speed Machining Center
Work envelope800 mm range
ConfigurationSimultaneous 5-axis

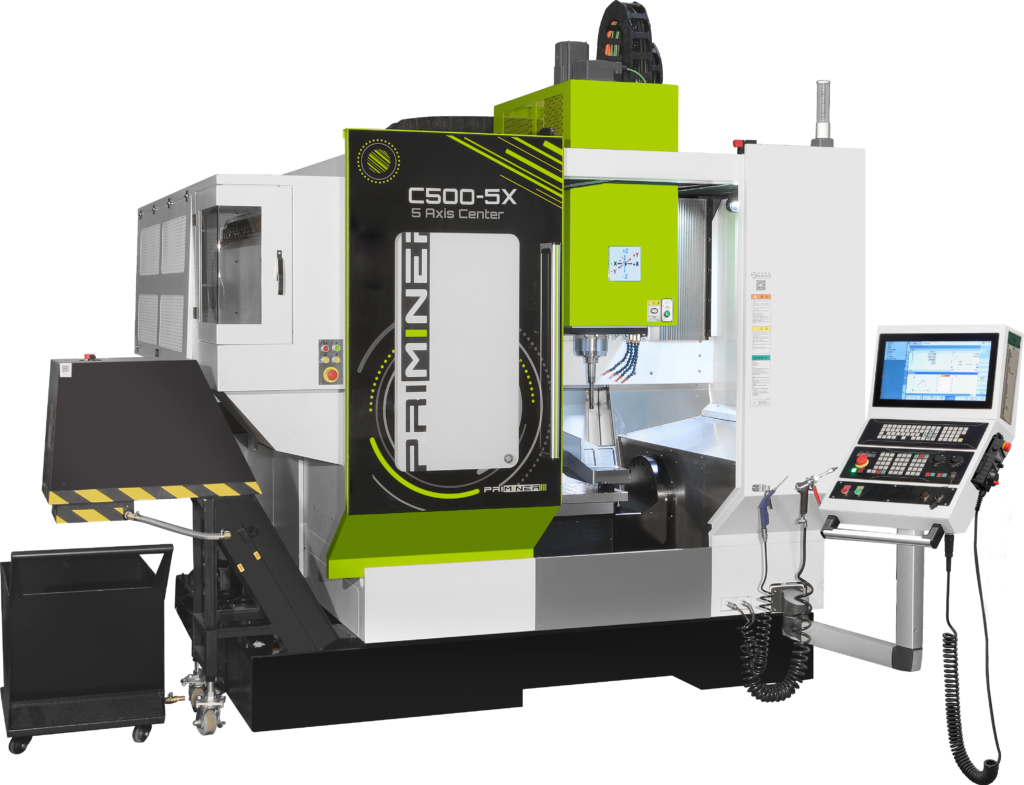

C500-5X
5-Axis High Speed Machining Center
Work envelope500 mm range
ConfigurationSimultaneous 5-axis
Series 04 — Heavy Duty Gantry
5-Axis Gantry Portal Center
Large-format gantry-style 5-axis machining centers for oversized workpieces requiring high rigidity and extended travel.
GT18-5X
5-Axis Gantry Portal Center
ConfigurationGantry / Portal
AxesSimultaneous 5-axis
GT320-5X
5-Axis Gantry Portal Center
ConfigurationGantry / Portal
AxesSimultaneous 5-axis
GT420-5X
5-Axis Gantry Portal Center
ConfigurationGantry / Portal
AxesSimultaneous 5-axis
GT428-5X
5-Axis Gantry Portal Center
ConfigurationGantry / Portal
AxesSimultaneous 5-axis
Series 05 — Ultra High Performance
UHP Series
Ultra high-performance vertical machining centers for demanding production runs requiring premium surface finish and tight tolerances.
UHP900
Ultra High Performance VMC
X travel900 mm
Performance classUltra high performance
UHP1100
Ultra High Performance VMC
X travel1,100 mm
Performance classUltra high performance
UHP1300
Ultra High Performance VMC
X travel1,300 mm
Performance classUltra high performance
Series 06 — High Speed Machining
High Speed Machining Centers
Gantry-type high-speed machining centers for large workpieces demanding rapid feed rates and excellent surface quality.
GT7
High Speed Gantry Machining Center
ConfigurationGantry type
SpindleDirect drive, high speed
Rapid traverseUp to 60,000 mm/min
GT11
High Speed Gantry Machining Center
ConfigurationGantry type
SpindleDirect drive, high speed
Rapid traverseUp to 60,000 mm/min
GT16
High Speed Gantry Machining Center
ConfigurationGantry type
SpindleDirect drive, high speed
Rapid traverseUp to 60,000 mm/min
GT18
High Speed Gantry Machining Center
ConfigurationGantry type
SpindleDirect drive, high speed
Rapid traverseUp to 60,000 mm/min
V1613HS
High Speed Vertical Machining Center
ConfigurationVertical / bridge type
SpindleHigh speed direct drive
SeriesHS Series
Series 07 — Power Center
Power Center — V18
Heavy-duty large-format vertical machining center designed for demanding material removal requiring maximum rigidity.
V18
Power Center VMC
ConfigurationHeavy duty vertical
SpindleBelt drive, 10,000 rpm
Tool changer24 ATC arm-type
Series 08 — Double Column
Double Column Center
Double-column bridge-type machining centers for very large workpieces requiring exceptional rigidity across wide spans.
V2516
Double Column Machining Center
Table size2,500 × 1,600 mm
ConfigurationDouble column bridge
SpindleDirect drive, high speed
V3320
Double Column Machining Center
Table size3,300 × 2,000 mm
ConfigurationDouble column bridge
SpindleDirect drive, high speed
V4028
Double Column Machining Center
Table size4,000 × 2,800 mm
ConfigurationDouble column bridge
SpindleDirect drive, high speed
Series 09 — Entry Level / Training
ShopMate V5
Compact vertical machining center for training, toolmaking, R&D, and small-batch production. Stress-relieved cast iron base for long-term stability.
ShopMate V5
Compact Vertical Machining Center
SpindleBelt drive, 10,000 rpm
Tool changer12-position umbrella ATC
ApplicationTraining / Toolroom / R&D
Series 10 — 5-Axis Gantry / Linear Motor
PT-Flex
High-precision 5-axis gantry machining center with linear motor direct drive on X/Y axes at 60 m/min. HSK A63 built-in spindle at 24,000 rpm with B/C direct-drive milling head.
PT-Flex 2520
5-Axis Gantry Linear Motor Machining Center
Table size2,500 × 2,000 mm
X/Y/Z travel2,000 / 2,500 / 1,000 mm
SpindleHSK A63, 24,000 rpm
Series 11 — High Speed Multi-Axis Gantry
Stellaris PX18
Dual-channel, dual milling head 11-axis simultaneous gantry center with linear motor direct drive at 100 m/min. Designed for high-volume automated production.
Stellaris PX18
High Speed Multi-Axis Gantry Machining Center
X/Y/Z travel3,300 (2×2,450) / 1,800 / 1,200 mm
Rapid traverse100 m/min
SpindleHSK A63, 20,000 rpm
Want the full Priminer catalog or datasheet?
Contact our team for complete technical datasheets, pricing, and delivery timelines.
